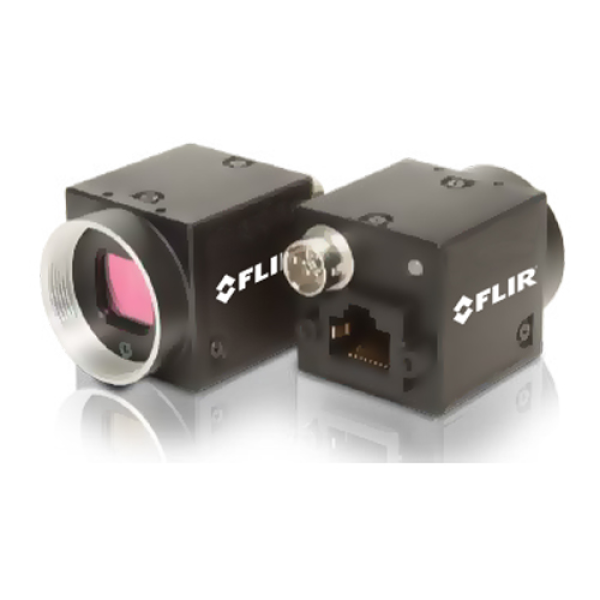

دوربین پلاک خوان فلر
مشخصات فنی
Firmware
1.53.3.0
Resolution
2448 x 2048
Frame Rate
22 FPS
Megapixels
5.0 MP
Chroma
Color
Sensor
Sony IMX264, CMOS, 2/3"
Readout Method
Global shutter
Pixel Size
3.45 µm
Lens Mount
C-mount
ADC
12-bit
Gain Range
0 dB to 48 dB
Exposure Range
0.022 ms to 11.99 seconds
Trigger Modes
Standard, bulb, overlapped, multi-shot
Partial Image Modes
Pixel binning, decimation, ROI
Image Processing
Gamma, lookup table, hue, saturation, and sharpness
HDR Sequencing
4 x exposure, 4 x gain
Image Buffer
16 MB
User Sets
2 user configuration sets for custom camera settings
Flash Memory
512 KB non-volatile memory
Opto-isolated I/O Ports
1 input, 1 output
Auxiliary Output
3.3 V, 120 mA maximum
Interface
GigE PoE
Power Requirements
12 V nominal (5 - 16 V) via GPIO interface
Dimensions/Mass
29 mm x 29 mm x 30 mm/36 g
Machine Vision Standard
GigE Vision v1.2
Compliance
CE, FCC, KCC, RoHS. The ECCN for this product is: EAR099.
Temperature
Operating: 0° to 45°C / Storage: -30° to 60°C
Humidity
Operating: 20% to 80% (no condensation) / Storage: 20% to 95% (no condensation)
Warranty
3 years
poE GigE color Camera
DIESPI-BFLY-PGE-50S5C-C
