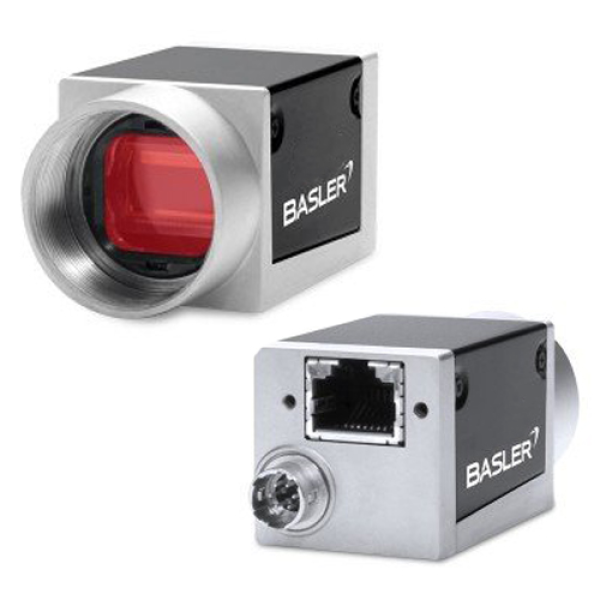

دوربین پلاک خوان باسلر
مشخصات فنی
Resolution (H x V Pixels)
1936 x 1216 (full resolution)
Sensor Type
Sony IMX249LQJ-C/ Progressive scan CMOS/ Global shutter
Optical Size
1/1.2"
Effective Sensor Diagonal
13.3 mm
Pixel Size (H x V)
5.86 μm x 5.86 μm
Frame Rate (at Default Settings)
42 fps
Product Line
ace U
Mono / Color
Color
Image Data Interface
Fast Ethernet (100 Mbit/s) / Gigabit Ethernet (1000 Mbit/s)
Pixel Formats
See Pixel Format.
Synchronization
Via hardware trigger / Via software trigger / Via free run
Exposure Time Control
Via hardware trigger / Programmable via the camera API
Camera Power Requirements
Power over Ethernet (PoE) 802.3af compliant supplied via / Ethernet connector /12–24 VDC supplied via I/O connector
I/O Lines
1 opto-coupled input line 1 / opto-coupled output line 1 / general purpose I/O (GPIO) line
Size (L x W x H)
42.0 mm x 29 mm x 29 mm (without lens mount or connectors) / 60.3 mm x 29 mm x 29 mm (with lens mount and connectors)
Weight
<90 g
Conformity
CE (includes RoHS), UL Listed, FCC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), REACH The EU Declaration of Conformity is available on the Basler website.
Software
Basler pylon Camera Software Suite (version 4.0 or higher) Available for Windows, Linux x86, Linux ARM, and OS X
DIESPI-BFLY-PGE-50S5C-C
5 / 0
هنوز نظری ثبت نشده.
+ نظر خود را ثبت کنید
هنوز نظری ثبت نشده. نظری دارید؟
| عنوان | نوع | سایز | |
|---|---|---|---|
| DIESPI-BFLY-PGE-50S5C-C | کاتالوگ | مگایابت | دریافت فایل |
